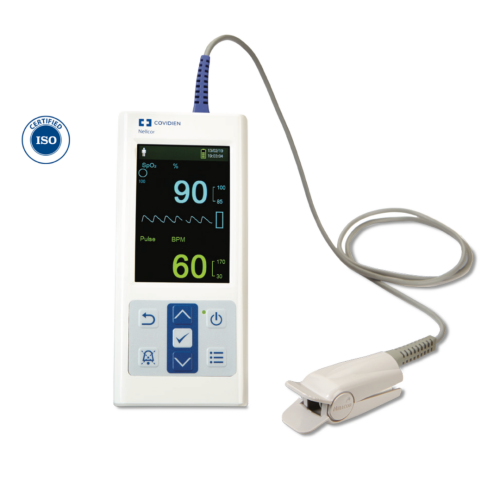

Nellcor Portable Pulse Oximeter with Pediatric Sensor

Nellcor Portable Pulse Oximeter with Pediatric Sensor

The Nellcor Portable Pulse Oximeter is a compact, lightweight handheld device designed with a clear color display, extended battery operation, and data storage capabilities. Its ergonomic design and portable form factor make it suitable for a variety of professional and technical environments.

Features:
• Compact and lightweight handheld design
• Color TFT LCD display with LED backlight
• Real-time data display and trend information
• Multiple operating modes
• Compatible with Nellcor OxiMax technology sensors
• Integrated data storage capability
• Portable battery-powered operation
• Visual and system status notifications

Specifications:
• Display Size: 3.5 in (88.9 mm) diagonal
• Display Type: TFT LCD with white LED backlight
• Resolution: 320 x 480 pixels
• Viewing Distance: Approximately 1 meter
• Data Storage: Up to 80 hours
• Battery Type: 4 x AA Lithium Batteries
• Battery Voltage: 1.5V each
• Battery Capacity: 3,000 mAh
• Operating Time: Up to 20 hours under standard conditions

Measurement Specifications:
• SpO₂ Range: 1% to 100%
• Pulse Rate Range: 20 to 250 bpm
• Pulse Range: 0.03% to 20%
• Display Sweep Speed: 6.25 mm/sec

Package Contents:
• Nellcor Portable Pulse Oximeter
• Pediatric Sensor
• User Documentation
